Digital Eddy Current Testing Equipment , TFT LCD Eddy Current
Conductivity Meter
Eddy Current Conductivity Meter Digital Eddy Current Testing
Equipment Eddy Current Conductivity Tester
HEC-100 series of eddy current electrical conductivity meters,
which are designed for quick & convenient measurement of material
property, such as material separate, quality control, material
state check and so on. The products use the electromagnetism
testing principle, can testing objects focus on non-ferromagnetic
materials.
HEC-100 series products use 60 KHz (aviation industry standard) to
inspirit, the testing data can be read in two kinds of unit (%IACS
and MS/m). The products can test electrical conductivity and
resistivity at the same time, and they include the intelligent
temperature and lift-off compensations, thus can guarantee the
testing accuracy of each measurement. The big typeface and the back
light illumination designs are advantageous for users to take the
testing data even in low light condition. The products use the high
property battery to make sure it keeps more running time, and
because of their mini-size, you could easy to carry and to grasp
hold. The design of the products are more advantages, such as users
can replace the probe in the outdoor, don’t need to return the
company to adjust the probe into matching the meter. About HEC-100,
two kinds of operate languages (English &Chinese) satisfy
different national demand. It can store 1000 measurement data,
moreover, users can use USB connect the meter to a PC to create
testing report.
Digital Portable Eddy Current Conductivity Meter with TFT - LCD
Application:
★ Absolute measurement of electrical conductivity of nearly all
non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry, monitor the process of
heat treatment, the strength and hardness of aluminum alloy；
★ Test the conductivity whenthe aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★ Test the resistivity ofconductivematerials；
★ Analyze thermal properties ofmaterials.

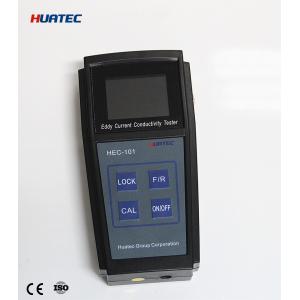

Hand-held eddy current conductivity tester for NF-metals with
automatic normalization of the conductivity values to 20°C through
temperature sensor.
HEC-101 Technical parameters
| Measurement technology | Eddy current |
| Operating frequency | 60KHz,120KHz |
| Display screen | 240X320 pixels TFT-LCD |
| L*B*H | 180*90*40 mm |
| Instrument case | Anti-intense impact, water-proofing polyester; Toolbox. |
| Weight | 300g |
| conductivity standard block | Verify and guarantee temperature compensation. |
| Measuring range | 6.9%IACS－110%IACS(4.0MS/m－64MS/m) |
| Distinguishing rate | 0.01% IACS |
| Probe compensated | 0.3mm |
| Measuring accuracy | 0°C to 45°C ± 0.1%IACS~ 0.5%IACS |
| Temperature compensation | Automatic compensation to the value of 20 ℃. |
| Normal work environment | Relative humidity | 0～95% |
| Operating temperature | 0℃～50℃ |
| Data storage | Can store 1000 measurement data. |
| Probe | Diameter: 12mm Applicable to minimum measuring area diameter at 60KHz is 12mm. |
Diameter: 8mm Applicable to minimum measuring area diameter at 60KHz is 8mm. |
Products use and maintain
Ⅰ,In order to prevent electric shock or catch fire, please use the
suitable power adapter.
Ⅱ,Avoid to drop and hit the instrument.
Ⅲ,Please keep the instrument clean and dry, please check the probe
and standard block weather are damaged or corrupted before using.
Ⅳ,Please do not operate in wet, explosive, chemic or high
temperature environment.
Ⅴ,Do not voluntarily replace the spare part, if the product is
abnormal or has suspicious breakdown, please contact with
technology department or serviceman of our company for help
